Waveshare 120W Industrial 4-Ports Gigabit Ethernet PoE Switch, US Plug, EU Plug

Waveshare 120W Industrial 4-Ports Gigabit Ethernet PoE Switch, US Plug, EU Plug

Regular price $36.80 USD
Regular price Sale price $36.80 USD
Sale Sold out
Shipping calculated at checkout.

1. Network standards: 1EEE 802.3, 1EEE 802.3u, 1EEE 802.3x
2. Ports: 4 10/100/1000 Mbps RJ45 PoE ports; 1 10/100/1000 Mbps RJ45 uplink port

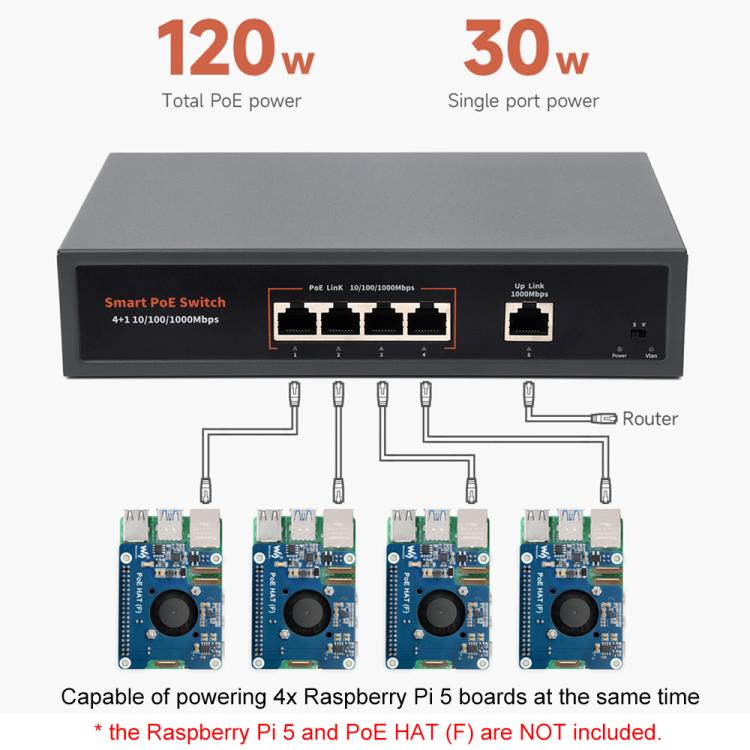

3. PoE power supply: 4 10/100/1000 Mbps RJ45 ports support PoE+ power supply; the power supply power of the whole machine is 120W peak, and the power supply power of a single port is 30W peak
4. PoE connection: support 1/2+, 3/6-pair and 4/5+, 7/8-pair end-spanning method
5. Performance: store and forward, support 2K MAC address table depth, 12Gbps backplane bandwidth
6. Forwarding rate: 10BASE-T: 14880pps/port; 100BASE-tx: 148800pps/port; 1000BASE-tx: 1488000pps/port

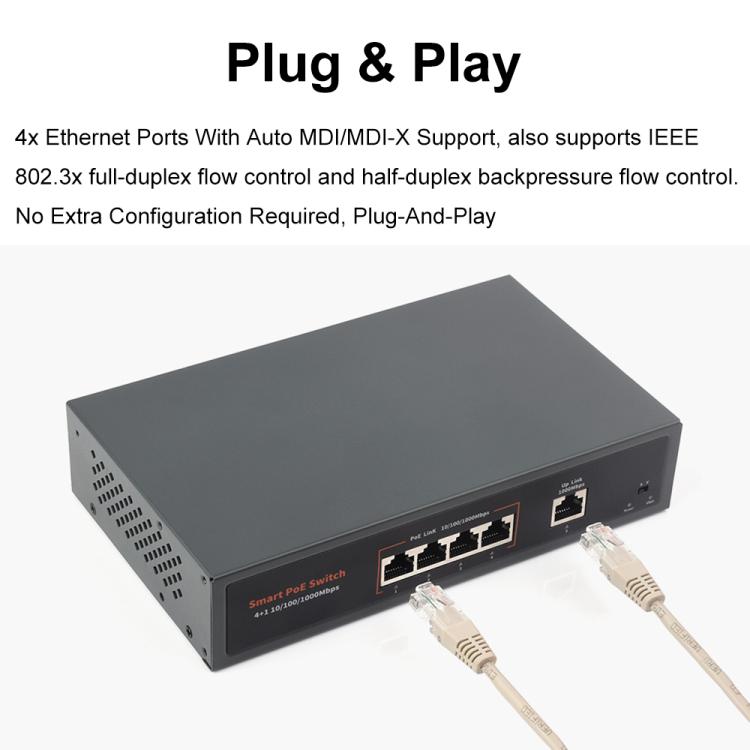

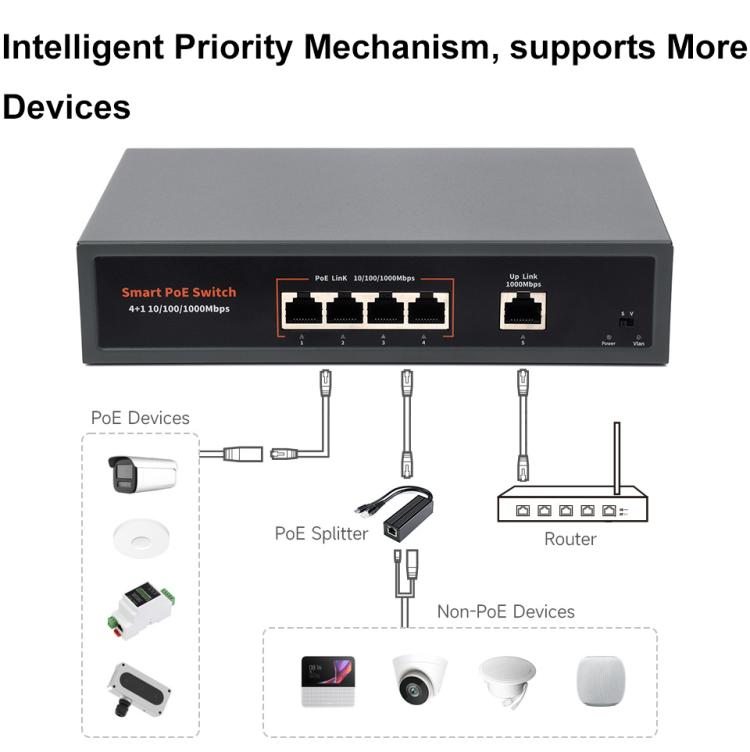

7. Port function: power supply priority mechanism, fast forwarding, MAC automatic learning and aging; IEEE802.3X full-duplex flow control and back pressure half-duplex flow control
8. Operating temperature: -20 to 55 degrees Celsius
9. Storage temperature: -20 to 75 degrees Celsius
10. Input: AC/IN 110V-240V
11. Output: DC 52V±5% 2.3A, less than or equal to 120W
12. Material: metal
13. Dimensions: 200 x 118 x 44mm
14. Weight: about 806g
Specification:
Package Weight
One Package Weight 1.00kgs / 2.21lb
One Package Size 26cm * 16cm * 8cm / 10.24inch * 6.3inch * 3.15inch
Qty per Carton 12
Carton Weight 13.10kgs / 28.88lb
Carton Size 28cm * 50cm * 34cm / 11.02inch * 19.69inch * 13.39inch
Loading Container 20GP: 560 cartons * 12 pcs = 6720 pcs
40HQ: 1300 cartons * 12 pcs = 15600 pcs
